# Passive buzzer
<span style="font-size:16px;">
Features of passive buzzer:
1、There is no vibration source inside the passive, so if you use a DC signal, you can't make it tweet. Must use 2k~5k square wave (pwm) to drive it
2、The sound frequency is controllable, and the effect of the sound spectrum can be made
3、In some special cases, a control port can be reused with LED

</span>

<div style="width:100%;text-align:center;">
![](././../../images_dir/1625016079/1.png)
![](././../../images_dir/1625016160/2.png)

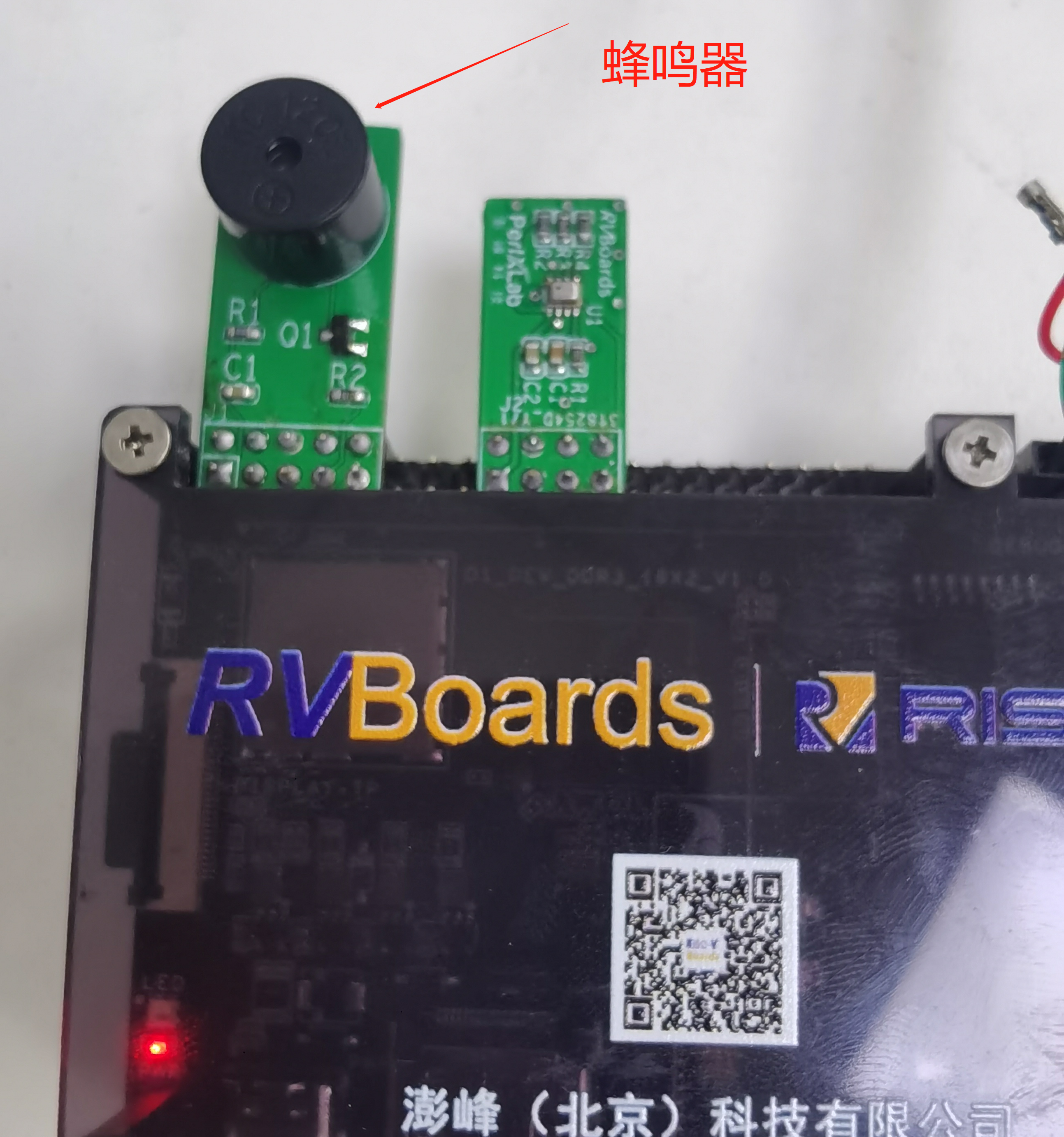

<span style="font-size:14px;">Schematic diagram of buzzer module installation</span>

</div>

**<span style="font-size:16px;">In this example, the system's own pwm drive is used to control the buzzer to sound</span>**

<span style="font-size:16px;">
Test script program driver_210519pwm_buzzerpwm_buzzer.sh
Test command:
1、Increase execution authority: chmod +x pwm_buzzer.sh
2、Execute the script program: ./ pwm_buzzer.sh 7 300000 150000，
   a)The first parameter (7): refers to the seventh pwm channel
   b)The second parameter (300000): Specify the frequency of pwm
      i.1000       1Mhz
      ii.10000      100Khz
      iii.100000     10Khz
      iv.1000000    1Khz
   c)The third parameter (150000): Specify the duty cycle of pwm
</span>

---

<div style="width:100%;text-align:center;">
![](././../../images_dir/1703141148/4.png)
