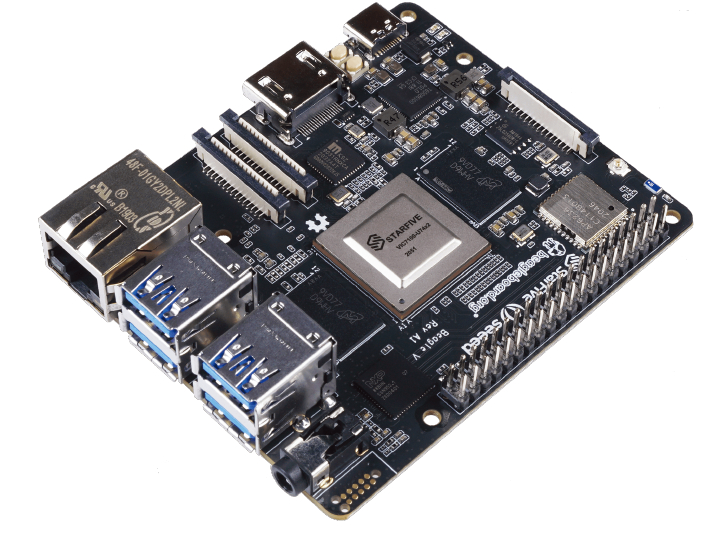

<div style="width:100%; text-align:center;" >Beagle Board </div>

------------

![](././../../images_dir/1610598824/1.png)

#### Description

BeagleVTM is the first affordable RISC-V computer designed to run Linux. It is fully open-source with open-source software, open hardware design and RISC-V open architecture.
BeagleVTM is powered by RISC-V SiFive U74 Dual-Core 64-bit RV64GC ISA SoC running at 1.5GHz with 4GB/ 8GB LPDDR4 RAM variants and has rich I/O peripherals such as USB 3.0 ports, 40 pin GPIO header, Gigabit Ethernet Connector, Micro-SD card slot and much more.
BeagleVTM also has rich AI features with Neural Network Engine and NVDLA Engine. It has onboard audio and video processing capabilities and has MIPI-CSI and MIPI-DSI connectors for video hardware.
It has wireless capabilities with Wi-Fi and BLE and has a wide software compatibility including support for FreeRTOS and Linux (Debian, Fedora).
You can use Seeed Fusion service to customize BeagleVTM according to your application and then move on to mass production.

#### Features

· Truly open-source hardware, software and RISC-V open architecture
· Powerful and rich AI features with Neural Network Engine and NVDLA Engine  Abundant I/O peripherals
· Wireless connectivity with Wi-Fi and BLE
· Onboard video and audio processing
· Wide software compatibility (FreeRTOS and Linux (Debian, Fedora))
· Integrated with Seeed Fusion Service for customization and mass production

#### Processor

· RISC-V SiFive U74 Dual-Core 64-bit RV64GC ISA SoC with 2MB L2 cache @ 1.5GHz
· Vision DSP Tensilica-VP6 for computing vision @ 600MHz
· NVDLA Engine (configuration 2048 MACs @ 800MHz )
· Neural Network Engine (1024MACs @ 500MHz)

#### Memory

· 4GB LPDDR4/ 8GB LPDDR4

#### Wireless Connectivity

· 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
· Bluetooth 4.2 (BLE)

#### Video Processing

· 2 x MIPI-CSI (up to 4K 30fps), 1 x MIPI-DSI (up to 4K 30fps)
· 1 x HDMI 1.4 (up to 1080p 60fps display)
· Video Decoder (H264/H265) up to 4K 60FPS; Support Dual stream decoding for 2K 30FPS each
· Dual channels of ISP, each channel support up to 4K  30FPS
· Support MIPI-CSI TX for video output after ISP and AI processing
· JPEG encoder/decoder

#### Dedicated Audio Processing DSP and Sub-system

· Ultra-low power Voice Activity Detector for audio bit-stream as a Voice Trigger
· On-chip Audio DAC
· Support DMIC and AMIC, up to 4 channels

#### Peripherals

· 4 x USB 3.0 ports
· 40 Pin GPIO Header (28 x GPIO, I2C, I2S, SPI, UART)
· Gigabit Ethernet Connector
· 3.5mm Audio jack (4-pole stereo audio output)
· Micro-SD card slot for system boot and data storage
· Support TRNG and OTP
· Support DMAC, QSPI and other peripheral
· Reset button and Power Button

#### Power
· 5V DC via USB-C connector (minimum 3A)
· 5V DC via GPIO header (minimum 3A)

#### Dimensions
· 86.9 x 70 x 19mm

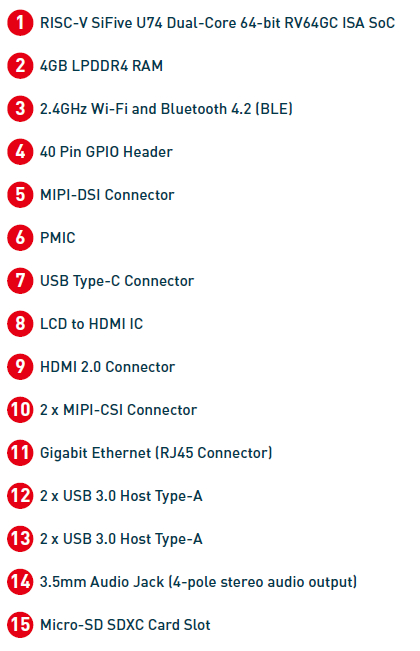

#### Pinout Diagram
![](././../../images_dir/1610599112/3.png)

![](././../../images_dir/1610599123/4.png)

![](././../../images_dir/1610599197/5.png)

![](././../../images_dir/1610599286/6.png)

------------

![](././../../images_dir/1610599380/7.png)
